Network HD Camera

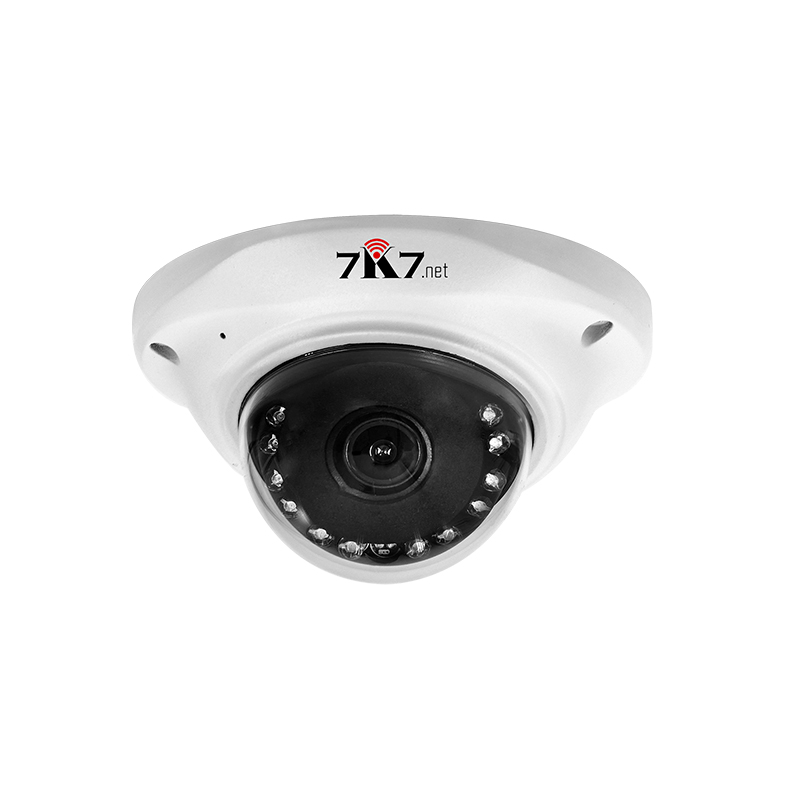

4MP Elevator CCTV Camera

4MP 1/3
F2.0 2.8mm
infrared light
Built-in sound pickup
Product description:
INQUIRY

Chip parameter
Name
System structure	Embedded RTOS design, single-core 32-bit DSP, pure hard compression, watchdog,8MB FLASH,64MB built-in DDR
Sensor	4MP 1/3" CMOS, color 0.001Lux@F1.2(AGC ON), black and white 0Lux(IR ON)
Video processing	H.265+/H.265/H.264 video coding, support dual stream,AVI format; Supports the bitstream 200k to 8000k bps adjustable, support P and N system
Frame rate	4MP Max 20 frames; Below 3MP Max 20 frames
Image output	2560× 1440,2304 ×1296,1920×1080,1280×960,1280×720
Image output	D1,800×448,640×480,640×360,352×288
Audio processing	G.711 codec standard, support audio and video synchronization
Support protocol	DHCP, HTTP, TCP/IP, IPv4, NTP, RTSP, ONVIF, P2P, the PPTP, GB/T2818 etc.
Business function	Support Web configuration, support OSD, support real-time video transmission, support mobile detection alarm linkage, support mobile detection alarm center reminder and screen pop-up linkage; Support remote monitoring software (Seetong) and other system applications
ONVIF protocol	Support
Client	mobile iOS, Android,PC client
Other functions	Huma detection
External parameter
Fill light	Wafer fill light
External port	1 RJ45 Ethernet interface,10/100M adaptive,8KV antistatic capability
Lightning protection	The power supply and network are fully lightning-proof, the front-end power input is lightning-proof, anti-static, and anti-reverse, and supports 18V shutdown voltage protection
Power supply	DC12V / 802.11af 48V POE (optional) +-25% Supports anti-reverse connection, overvoltage, overcurrent protection, and input short-circuit protection
Working environment	-40℃ to +85℃
IP grade	IP50
Power comsumption	day < 1.5W Max night < 4.5W Max
Size (mm)	120 * 120 * 61
Weight	Body weight :297g Packaging quality :363g
