K-T3K03-XSD04-0001W

Chip Parameters

Model

T3K03-XSD04-0001W

Name

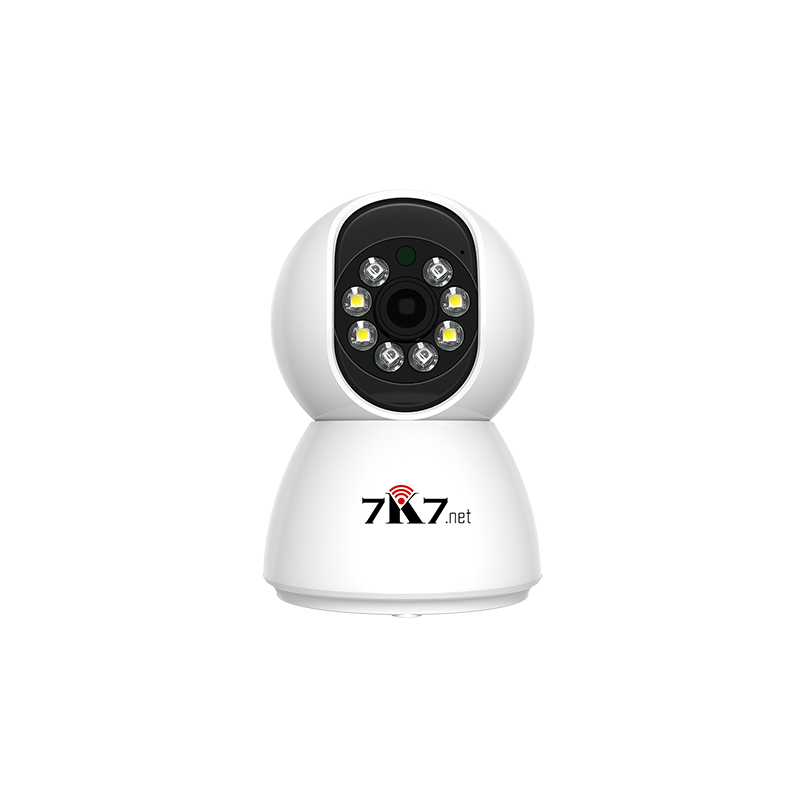

Dual-Light PTZ Network Camera

System Architecture

Embedded RTOS design, single-core 32-bit DSP, pure hardware compression, 8MB Flash, 64MB built-in DDR

Sensor

3MP CMOS (optical format: 1/2.7"), Color: 1.0 Lux @ F2.0, B/W: 0.1 Lux @ F2.0

Lens

4mm F1.6 starlight lens

Video Processing

H.265+/H.265/H.264 video encoding, supports dual stream, bitrate adjustable 500~3000kbps, supports P/N制 (PAL/NTSC)

Frame Rate

3MP @ 30fps

Image Output

Main stream: 2304×1296, 1920×1080, 1280×720

Sub stream: 640×360, 352×288

Audio Processing

G.711 codec, supports two-way audio intercom, supports audio/video synchronization

Reset

1 Reset button, hardware reset

Supported Protocols

TPS, TCP/IP, IPv4, DHCP, RTSP, P2P

ONVIF Protocol

Requires ONVIF firmware upgrade

Functions

Supports OSD, real-time video transmission, smart detection alarm linkage, supports Seetong cloud service

Client

Supports mobile app (iOS, Android), PC client

Other Features

Sound alarm, light alarm

Wireless RF

Wireless Standard

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Physical & Environmental

Fill Light

4x infrared + 4x white light

Storage Expansion

TF card slot, supports up to 512GB

External Ports

1x USB power port, 1x RJ45 Ethernet port (10/100M auto-sensing)

Surge Protection

Compliant with ITU-T K.21-2008, IEC61000-4-2/IEC61000-4-5; 8kV ESD protection

Power Supply

DC 5V

Operating Environment

-40°C ~ +85°C

Ingress Protection

IP50

Power Consumption

Day: <1.5W max; Night: <3W max

Dimensions (mm)

112*74*74
