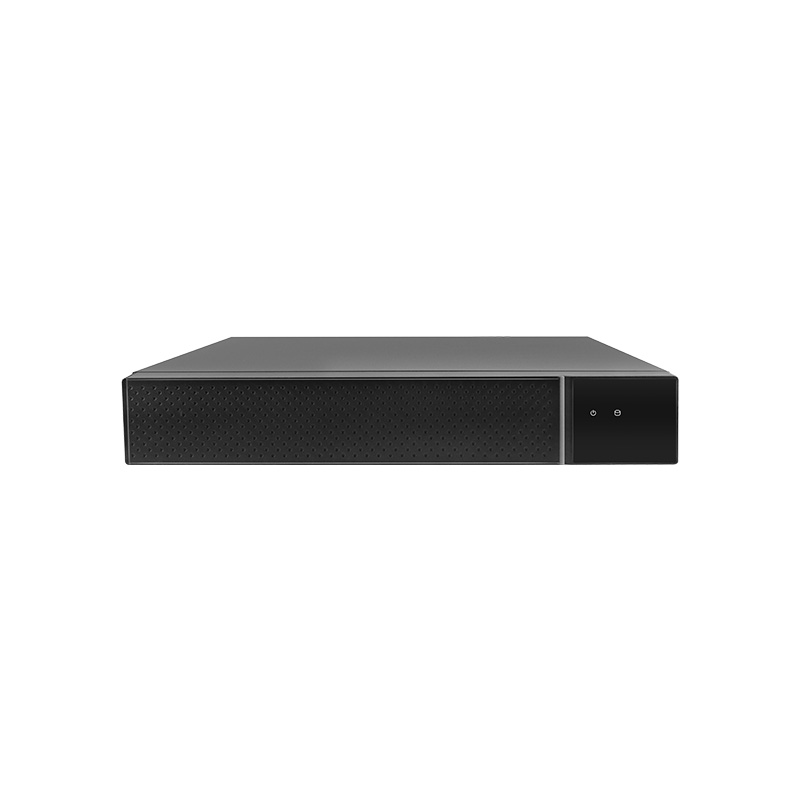

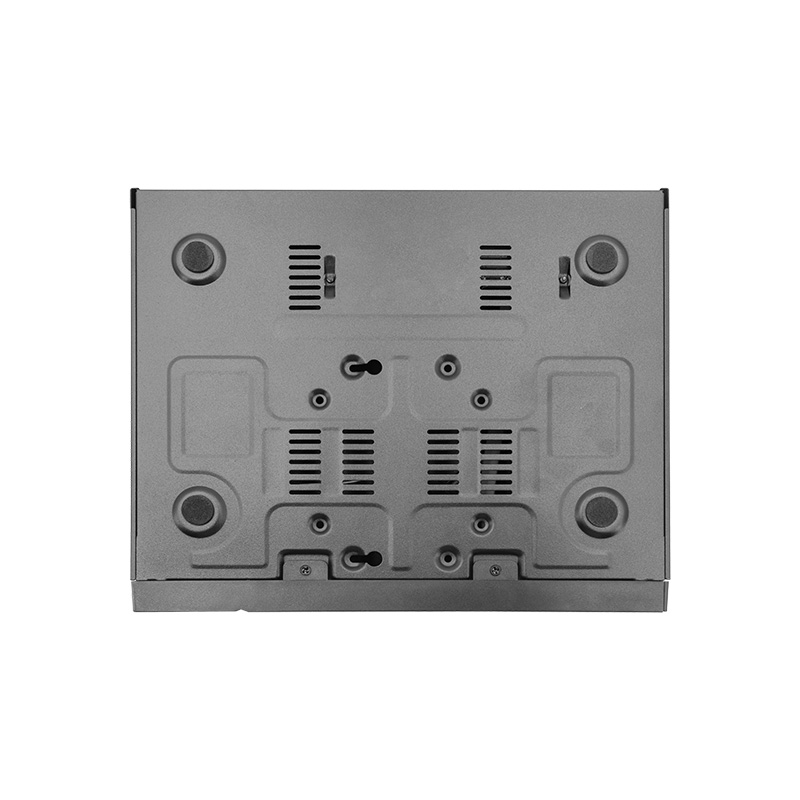

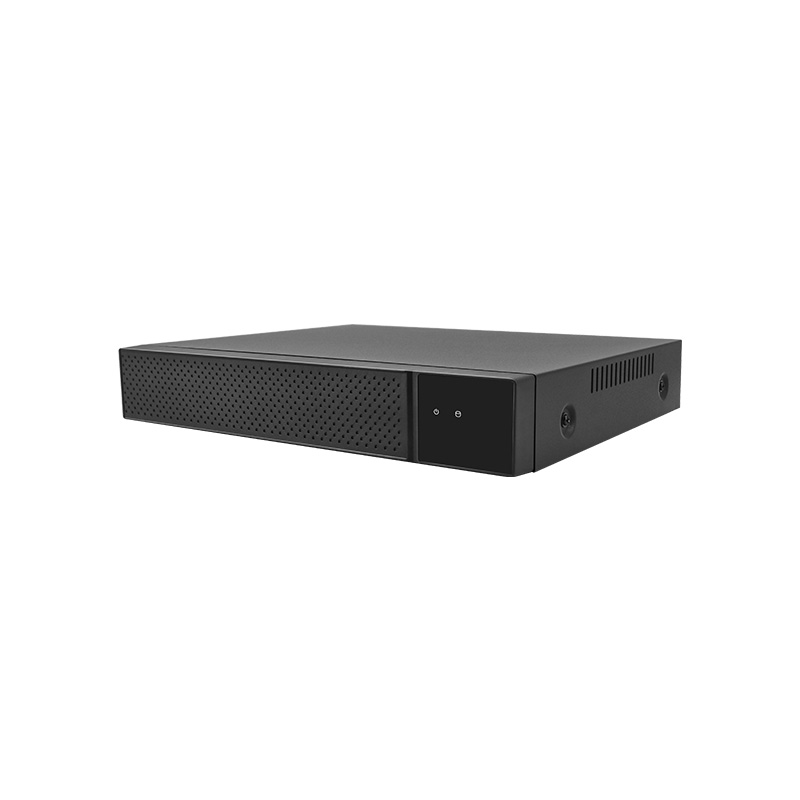

Network Video Recorder

10CH H.265 network video recorder

Supports 10-channel HD access
Simultaneous playback of 2 channels of 800W or 4 channels of 500W
Single disk position, supports up to 14TB
Supports 38 local users
Product description:
INQUIRY

Specifications
System structure	Embedded LINUX design, pure hardware decoding, watchdog, hard disk storage, HDMI high-definition display, IP network video access
Video input	High-definition IPC access, supports dual-stream access for each IPC, supports automatic search, automatic addition, automatic recording, automatic preview, and zero debugging; Access bandwidth 64Mbps
Video output	1 HDMI output, 1 VGA output, same source as HDMI; Resolution: 3840×2160, 1920×1080, 1440×900, 1280×1024, 1280×800, 1024×768
Recording resolution	supports 720P/960P/1080P/3MP/4MP/5MP/8MP
Video decoding	Supports H.265+/H.265/H.264NVR synchronous playback 2 channels (2*8MP); Seetong client remote recording playback supports up to 2 channels
Audio	Standard G.711, supports audio and video recording; Supports HDMI audio output, supports audio output/input; Supports Seetong client audio and video preview and playback
Storage management	1 SATA interface, each interface supports a hard disk with a maximum capacity of 14TB; supports scheduled recording, motion detection linkage recording/alarm linkage recording/cross-border recording/regional intrusion recording/intelligent face recording/intelligent license plate recording/intelligent human-shaped recording/intelligent car-shaped recording
User management	supports up to 38 users
Network interface	1 RJ45 Ethernet interface, supports 10/100M adaptive; supports TCP/IP, IPv4, DHCP, NTP, RTSP, ONVIF, P2P, SMTP, GB28181 and other network protocol
Business functions	Support preview/recording/forwarding/remote service, support alarm linkage, support Seetong client remote monitoring software; support Seetong cloud service
External parameters
Front panel	Supports 3 status indicators for power, recording, and network transmission

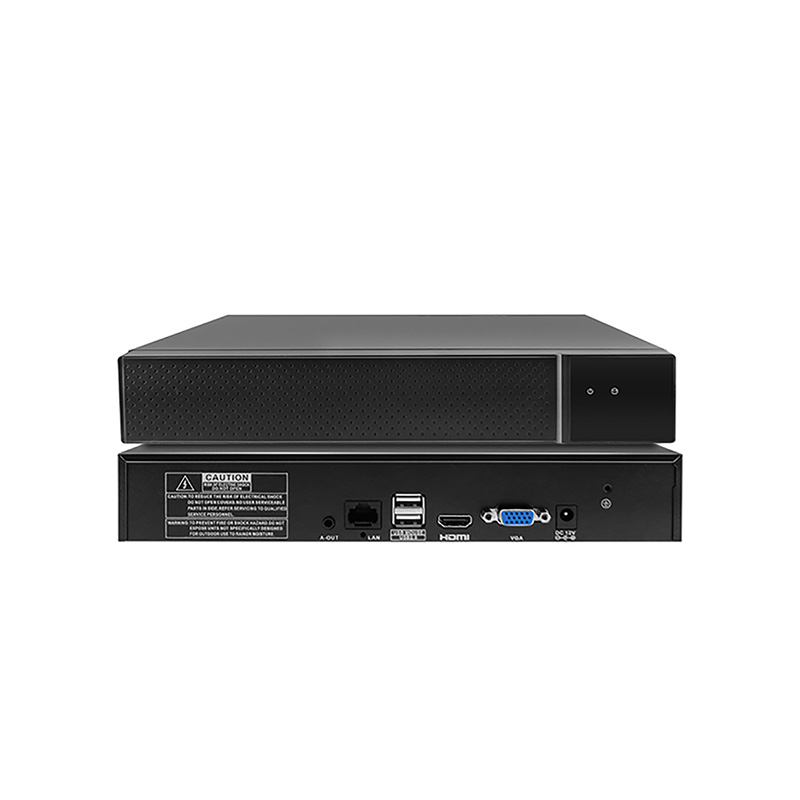

External ports	2 USB2.0 interfaces (rear); Support mouse, USB upgrade, import and export
Working humidity	10%～90%
Working temperature	-10℃～＋55℃
Weight	608g
Power consumption	≤3W power consumption (excluding hard disk)
Power supply	Input DC +12V/2A
